GENESIS Tutorial 7.1 (2022)
Coarse-grained MD simulation with the KB Go-model
Coarse-grained models are useful for studying large-scale conformational dynamics of biomolecules with time scales that are difficult for atomistic MD simulations to access. Here, we give a simple example of using the coarse-grained model in GENESIS. We are going to simulate the folding/unfolding of protein G, using a variation of the Go-model potential energy function developed by Karanicolas and Brooks1 2 (hereafter referred to as the KB Go-model).
All the files required for this tutorial are hosted in the GENESIS tutorials repository on GitHub.
If you haven’t downloaded the files yet, open your terminal and run the following command (see more in Tutorial 1.1):
$ cd ~/GENESIS_Tutorials-2022
# if not yet
$ git clone https://github.com/genesis-release-r-ccs/genesis_tutorial_materials
If you already have the tutorial materials, let’s go to our working directory:
$ cd genesis_tutorial_materials/tutorial-7.1
Verify the initial PDB structure
$ ls
1_construction 2_production 3_analysis
$ cd 1_construction
$ vmd 1pgb.pdb
This tutorial consists of three steps:
- System setup
- Production run
- Trajectory analysis
1. Setup the system

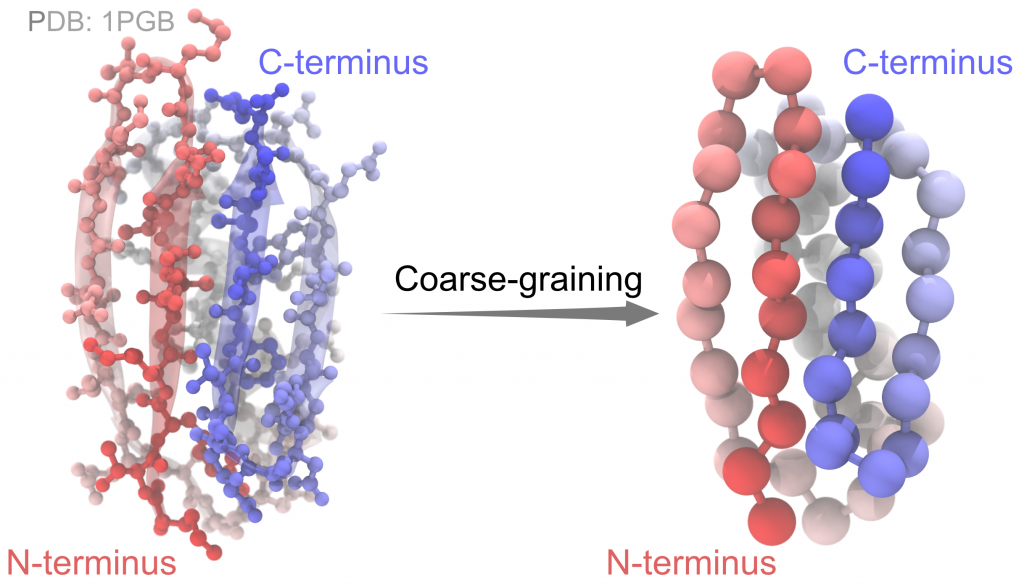

The KB Go-model simplify each amino acid residue as one coarse-grained bead, which locates at the position of the alpha carbon (Cα). The potential energy function is given in section 5.1 of the GENESIS manual. There are differences between the KB Go-model and a typical atomistic model:
- No electrostatic terms in the KB Go-model
- The VdW terms are divided into two terms: native contacts and non-native contacts, where the native contacts have 12-10-6-type attractive potential, while the non-native contacts have 12-type repulsive potential.
In the first step, we are going to generate a param
file (parameter file) and
a top
file (topology file) by using the MMTSB
web service. After this, we are going to use VMD
to create a psf
file (protein structure file) that is required for GENESIS simulation.
To build a simulation system, we start by downloading a PDB file of protein G
from the RCSB Protein Data Bank (also can be found in
1_construction/1pgb.pdb
). You can download the PDB file via a web browser,
or use the following commands:
# change to the construction directory
$ cd /path/to/1_construction
# download the PDB file (PDB code 1PGB)
$ wget https://files.rcsb.org/download/1PGB.pdb
The downloaded PDB file has to be ”cleaned” by removing everything
except the lines starting with the ATOM
flag:
# "clean" the file by deleting the entries other than ATOM
$ grep -e "^ATOM" 1PGB.pdb > 1pgb_edited.pdb

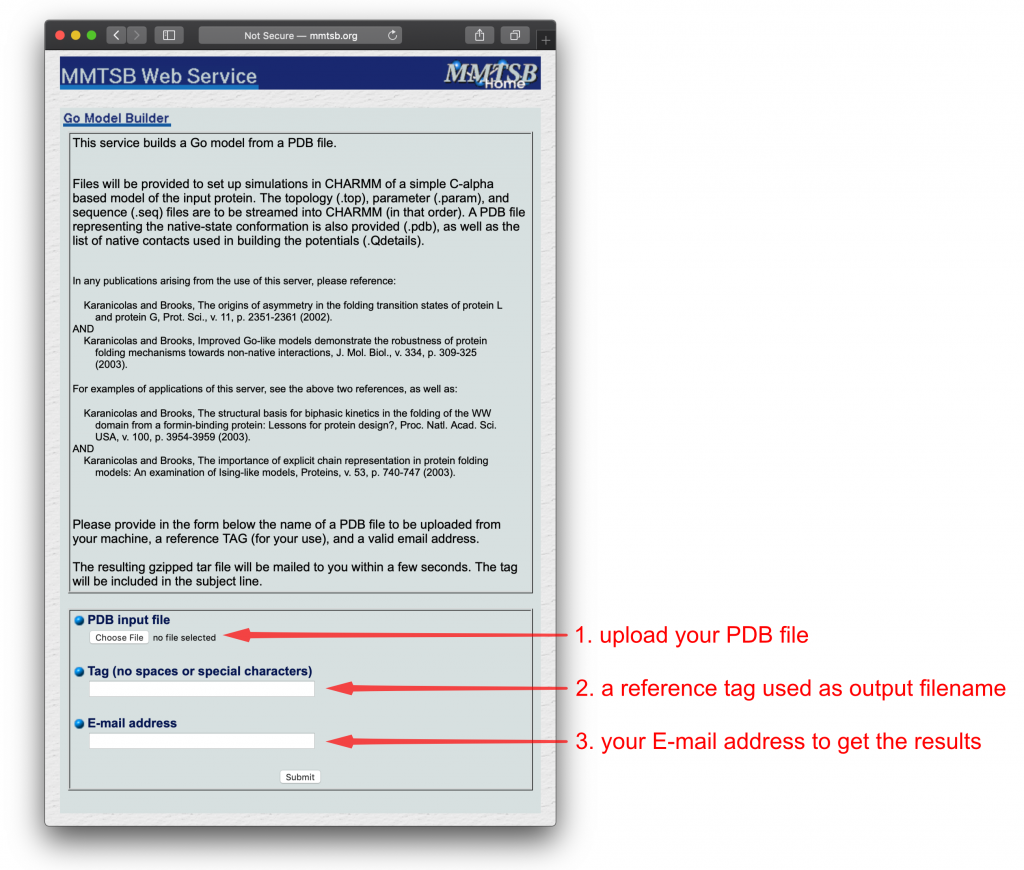

Then we submit it to the MMTSB server:
- Upload our “cleaned” PDB file (
1_construction/1pgb_edited.pdb
) - Give a reference tag (i.e.
1pgb
) - Enter your e-mail address
The webpage looks like this:
After MMTSB finishes the calculations, a tar-ball will be sent to your email
address (we provided one as well, located at 1_construction/1pgb.tar
).
Extract the tar-ball into the working directory and you will find the
coarse-grained coordinate, topology and parameter files.
# extract the tar-ball file
$ tar xvf /path/to/1pgb.tar
Here we only simulate a single-chain protein. However, if the protein of
interest contains multiple chains, you have to manually modify the BOND,
ANGLE, DIHEDRAL and NBFIX parameters in the *.param
files. Besides,
“Bond CA + CA
” information in the *.top
files should also be
corrected. After these modifications, the topology and interactions of
the whole structure should be visually verified in VMD
.
A VMD script (1_construction/setup.tcl
) is provided to build the GO
model below:
### read pdb
mol load pdb GO_1pgb.pdb
### replace residue names with G1, G2, G3, ...
set all [atomselect top all]
set residue_list [lsort -unique [$all get resid]]
foreach i $residue_list {set resname_go [format "G%d" $i] set res [atomselect top "resid $i" frame all] $res set resname $resname_go}
$all writepdb tmp.pdb
### generate PSF and PDB files
package require psfgen
resetpsf
topology GO_1pgb.top
segment PROT {first none last none pdb tmp.pdb}
regenerate angles dihedrals
coordpdb tmp.pdb PROT
# move system origin to center of mass
$all moveby [vecinvert [measure center $all weight mass]]
# write psf and pdb files
writepsf go.psf
writepdb go.pdb
exit
The script does these things:
- Reads in the PDB file created by the MMTSB web service and replaces the
residue names with special ones for the KB Go-model (
G1, G2, G3, ...
). These new names should match the residue names defined in thetop
andparam
files - Moves the molecule so that the center of mass is at the origin
- Calls the
psfgen
plugin to generate apsf
file (1_construction/go.psf
) and apdb
file (1_construction/go.pdb
)
The script can be run with VMD in the following way:
$ vmd -dispdev text <setup.tcl | tee run.out
Now we can visualize the structure with VMD by specifying the psf
file
(1_construction/go.psf
) and the pdb
file (1_construction/go.pdb
):
$ vmd -psf go.psf -pdb go.pdb
2. Production simulation
Coarse-grained simulations are usually not very sensitive to the initial configuration. Therefore here we perform a production simulation without energy minimization or equilibration.
The following command performs a \(1 \times 10^8\) steps production
simulation with atdyn
:
# change to the production directory
$ cd /path/to/2_production/
# set the number of OpenMP threads
$ export OMP_NUM_THREADS=1
# perform production simulation with ATDYN by using 8 MPI processes
$ mpirun -np 8 atdyn run.inp | tee run.out
The control file (run.inp
) contains several sections, such as
[INPUT]
, [OUTPUT]
, and [ENERGY]
, where we can specify the control
parameters for the simulation. In the [INPUT]
section, we set the file
names for the topfile
(topology file), the parfile
(parameter file),
the psffile
(protein structure file), and the pdbfile
(the initial
structure) (see section 4.1 of the GENESIS manual for an explanation
of each input file).
In the [OUTPUT]
section, output filenames are set. atdyn
does not
create any output file unless we explicitly specify their names. Here in
our example, the rstfile
(restart file) and the dcdfile
(binary
trajectory file) are set (see section 4.2 of the GENESIS manual for
an explanation of each output file).
In the [ENERGY]
section, we specify the parameters related to the
energy and force evaluation. KBGO
is the force-field name for the KB
Go-model in GENESIS. We set relatively large values for the cutoff
distances (cutoffdist=20, pairlistdist=50
), which are safe but not
optimal for computational efficiency. The user can consider different
values to balance computational efficiency and accuracy in the case of
large biomolecular systems.
The [DYNAMICS]
section sets up the parameters for the MD engine of
atdyn
. For the KB Go-model with SHAKE constraints, the time step can
be set to 20 fs.
In the [CONSTRAINTS]
section, we enable SHAKE algorithm on all bonded
pairs (rigid_bond=YES
). We set fast_water=NO
since here we don’t
have any water molecule. The tolerance for SHAKE is set
to shake_tolerance=1.0e-6
.
Note: In the case of KB
GO, rigid_bond=YES
constrains all the bond lengths with SHAKE
algorithm. Generally, the convergence of SHAKE becomes more difficult
as the system gets bigger because of the increasing number of bonds
involved in SHAKE. For larger systems, a value of timestep=0.010
is
more recommended for better convergence.
In the [ENSEMBLE]
section, the LANGEVIN
thermostat is chosen for an
isothermal simulation with the friction constant of 0.01 ps^-1^.
Finally, in the [BOUNDARY]
section, we set the boundary condition for
the system, which is no boundary condition (NOBC
) here.
[INPUT]
topfile = ../1_construction/GO_1pgb.top # topology file
parfile = ../1_construction/GO_1pgb.param # parameter file
psffile = ../1_construction/go.psf # protein structure file
pdbfile = ../1_construction/go.pdb # PDB file
[OUTPUT]
dcdfile = run.dcd # DCD trajectory file
rstfile = run.rst # restart file
[ENERGY]
forcefield = KBGO
electrostatic = CUTOFF
cutoffdist = 20.0 # cutoff distance
pairlistdist = 50.0 # pair-list cutoff distance
[DYNAMICS]
integrator = LEAP # [LEAP,VVER]
nsteps = 100000000 # number of MD steps
timestep = 0.020 # timestep (ps)
eneout_period = 10000 # energy output period
rstout_period = 10000 # restart output period
crdout_period = 10000 # coordinates output period
nbupdate_period = 100 # nonbond update period
[CONSTRAINTS]
rigid_bond = YES # in KBGO, all bonds are constrained
fast_water = NO # settle constraint
shake_tolerance = 1.0e-6 # tolerance (Angstrom)
[ENSEMBLE]
ensemble = NVT # [NVE,NVT,NPT]
tpcontrol = LANGEVIN # thermostat
temperature = 325 # initial and target
# temperature (K)
gamma_t = 0.01 # thermostat friction (ps-1)
# in [LANGEVIN]
[BOUNDARY]
type = NOBC # [PBC, NOBC]
3. Analysis: RMSD calculation
As an example for the analysis, we use the crd_convert
, which is one
of the post-processing programs in GENESIS. crd_convert
is a utility
to calculate various quantities from a trajectory. The following
commands calculate RMSD of the simulation trajectory.
# change to the analysis directory
$ cd /path/to/3_analysis/
# set the number of OpenMP threads
$ export OMP_NUM_THREADS=1
# perform analysis with crd_convert
$ crd_convert run.inp | tee run.out
The control file for the RMSD calculation is shown below:
[INPUT]
psffile = ../1_construction/go.psf # protein structure file
reffile = ../1_construction/go.pdb # PDB file
[OUTPUT]
rmsfile = run.rms # RMSD file
[TRAJECTORY]
trjfile1 = ../2_production/run.dcd # trajectory file
md_step1 = 100000000 # number of MD steps
mdout_period1 = 10000 # MD output period
ana_period1 = 1 # analysis period
trj_format = DCD # (PDB/DCD)
trj_type = COOR # (COOR/COOR+BOX)
[SELECTION]
group1 = all # selection group 1
[FITTING]
fitting_method = TR+ROT # method
fitting_atom = 1 # atom group
[OPTION]
check_only = NO # (YES/NO)
In the [TRAJECTORY]
[ ]section, we set the input trajectory file as
trjfile1=../2_production/run.dcd
.
In the [SELECTION]
section, we define a group (group1
) of all beads
in the model which are used for the RMSD calculation. In the [FITTING]
section, the fitting method is specified. In this case, translations
(TR
) and rotations (ROT
) are used for the fitting. Finally the RMSD
output file (rmsfile=run.rms
) is set in the [OUTPUT]
section.
By running crd_convert
, we get an RMSD file (run.rms
). The first
column of this file is the time step, and the second column is the RMSD
values in the unit of Angstroms. One can visualize it with programs such
as gnuplot:
$ gnuplot
gnuplot> set xlabel "Step"
gnuplot> set ylabel "RMSD [Angstrom]"
gnuplot> plot "run.rms" w lp

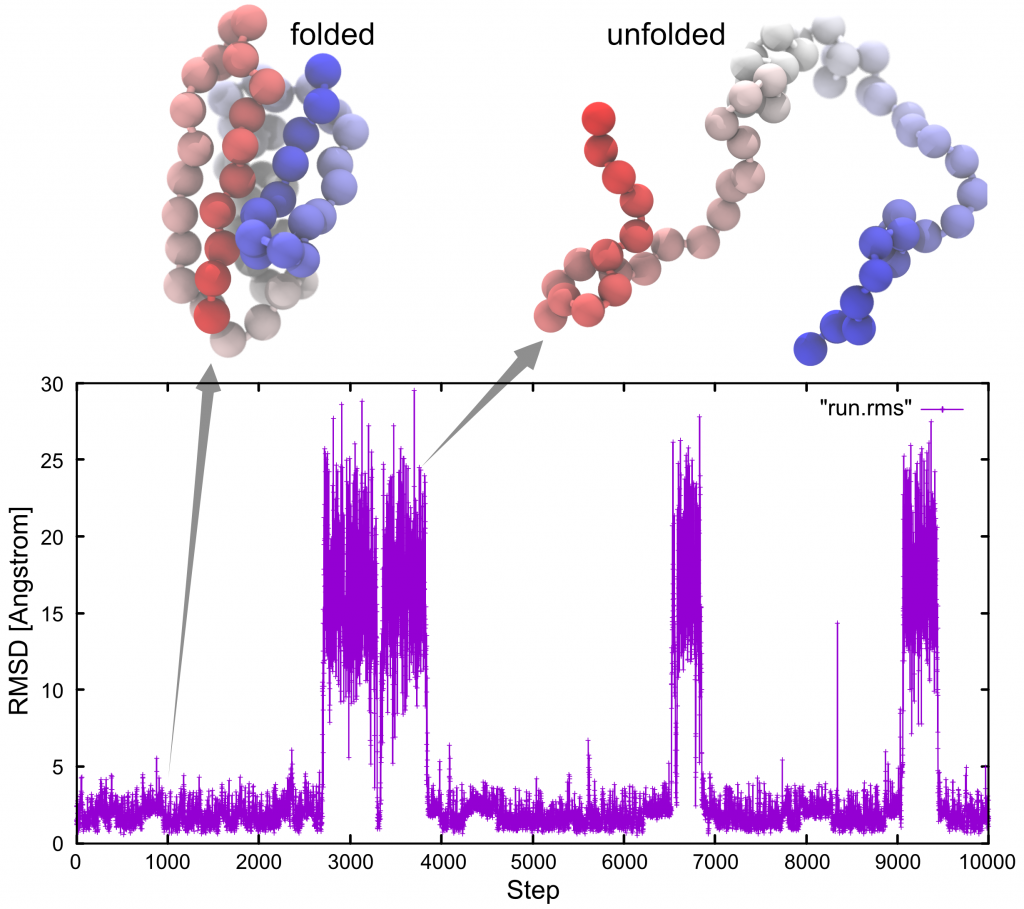

As can be seen in the following figure, small and large RMSD values correspond to folded and unfolded states of the protein, respectively:
Note: Results may differ due to different random numbers generated.
Written by Donatas Surblys@RIKEN Theoretical molecular science laboratory, June 2016
Updated by Yasuhiro Matsunaga@RIKEN R-CCS, May 2018
Updated by Cheng Tan@RIKEN R-CCS, July 2019
