To achieve optimal performance with spdyn, it is recommended that users first understand the basic parallelization scheme it employs. spdyn uses a domain decomposition method, in which the entire simulation box is divided into multiple domains based on the number of MPI processes. Each domain is further subdivided into cells, whose sizes are automatically adjusted to be approximately equal to or larger than the pairlistdist specified in the control file. All domains and cells share the same shape and size.

Each MPI process is responsible for one domain, and communication of atomic coordinates and forces occurs only between neighboring domains. Within each domain, the computation of both bonded and non-bonded interactions is parallelized using OpenMP. This design results in a hybrid MPI/OpenMP parallelization, which is generally more efficient than flat MPI parallelization on modern systems with multi-core CPUs.

Because MPI and OpenMP are optimized for distributed-memory and shared-memory architectures, respectively, MPI is primarily used for inter-node parallelization, while OpenMP is used for intra-node parallelization.

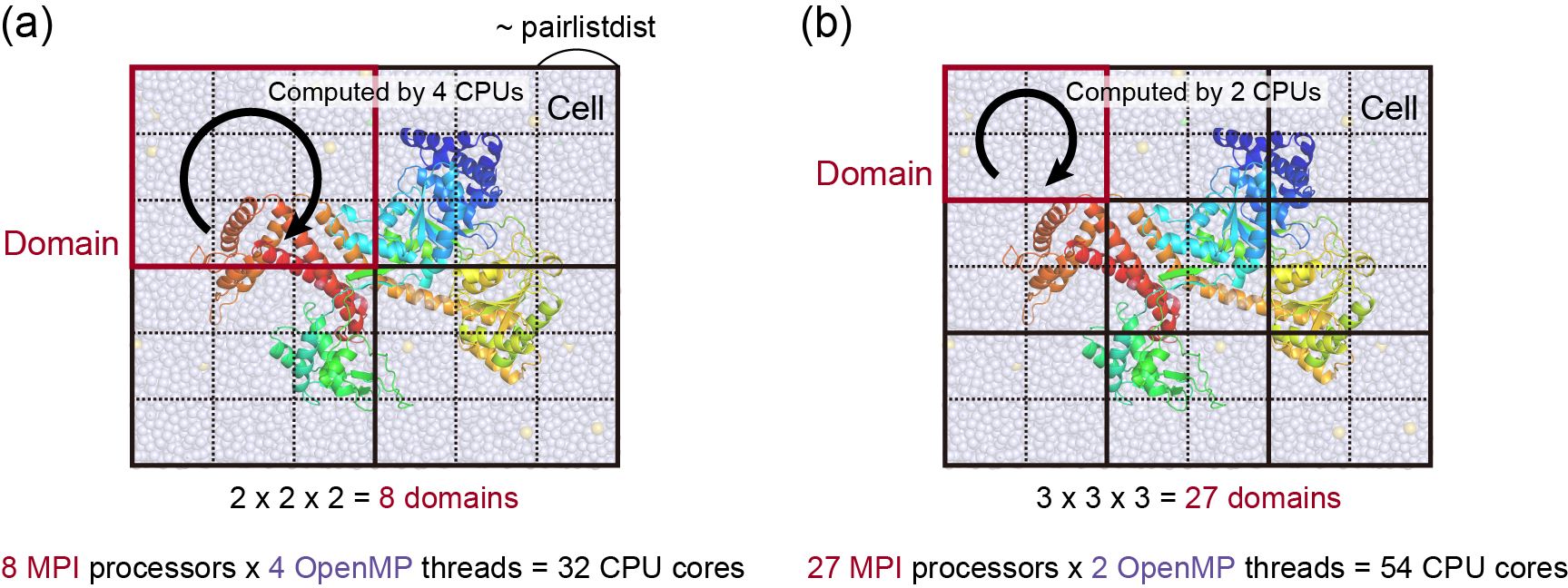

The following diagrams illustrate examples of hybrid MPI/OpenMP setups:

  • In Figure (a), 8 MPI processes are used, each spawning 4 OpenMP threads (totaling 32 CPU cores).
  • In Figure (b), 27 MPI processes are used, each with 2 OpenMP threads (totaling 54 CPU cores).

For simplicity, only the XY-plane is shown in these illustrations.

For Case (a), the following commands are used:

$ export OMP_NUM_THREADS=4
$ mpirun -np 8 /home/user/genesis/bin/spdyn INP > md.log

In the log file, the user can see information about how many MPI processors and OpenMP threads are used for hybrid parallel calculation and how many domains and cells are constructed for the system. For Case (a), the log message looks like this:

Setup_Mpi_Md> Summary of Setup MPI
  number of MPI processes   =        8
  number of OpenMP threads  =        4
  total number of CPU cores =       32

...

Setup_Boundary_Cell> Set Variables for Boundary Condition
  domains (x,y,z) =          2         2         2
  ncells (x,y,z)  =          6         6         6

If “unexpected” number of MPI processors or OpenMP threads is shown, there might be an error in your command or batch scripts.

The user can specify domain numbers explicitly in the control file (domain_x, domain_y, and domain_z in the [BOUNDARY] section). For example, in Case (b) the following parameters and commands are used:

[BOUNDARY]
type          = PBC    # [PBC]
domain_x      = 3      # number of domains in x dimension
domain_y      = 3      # number of domains in y dimension
domain_z      = 3      # number of domains in z dimension

Commands:

$ export OMP_NUM_THREADS=2
$ mpirun -np 27 /home/user/genesis/bin/spdyn INP > md.log

Note that in this way total number of MPI processors must be identical to domain_x × domain_y × domain_z. Otherwise, the simulation stops immediately at the setup stage. If domain numbers are not specified in the control file, they are automatically determined at the beginning of the simulation according to the number of MPI processors. However, this automatic setting can work in the case MPI number is suitable to construct proper numbers of domain and cell.

The user can set “export OMP_NUM_THREADS=1” in hybrid MPI/OpenMP calculation, while it means flat MPI.

Due to specific algorithms implemented in spdyn (J. Jung et al., 2014 ), there is a strict rule for the number of cells in each domain, where the domain should be composed of more than 8 cells and at least 2 cells in each dimension. Thus, to use spdyn the target system should be large enough. The user should remember this rule, especcially, in the NPT simulation, because the box size can change during the simulation. In the NPT simulation, domain numbers are fixed to the initial values, while cell numbers can change and are adjusted to keep the cell size larger than pairlistdist. When the cell number in one dimension unfortunately becomes one, the simulation stops immediately because of the violation of the above rule. The user may often encounter this situation if the cell size is very close to pairlistdist and the cell number in one dimension is only two at the beginning of the MD simulation. To avoid such problems, the user may have to use smaller number of MPI processors (which makes larger domain) or shorter pairlistdist (making much cells in one domain), or reconstruct a larger system.
